Festool KS 60 E-SET 230V GB 216mm Sliding Compound Mitre Saw - 561729

Festool KS 60 E-SET 230V GB 216mm Sliding Compound Mitre Saw - 561729

The Festool KS 60 E-SET 230V Sliding Compound Mitre Saw is a compact, lightweight tool designed for mobile use, perfect for assembly tasks. It features an LED spotlight for precise cutting lines, a cutting depth limiter for grooving, and a bevel for accurate interior and exterior angles. With inclination angles up to 47°/46° and mitre angles up to 60° on each side, it offers versatile cutting options. The integrated dust extraction system ensures a cleaner, healthier workspace. Paired with Festool saw blades and the UG-KAPEX base frame, this saw delivers both precision and portability.

Features:

Compact and lightweight, with ergonomic handles and cord holder
LED spotlight to show cutting lines precisely (included in the set or available as an accessory)
Bevel for producing interior and exterior angles
Inclination angle of up to 47°/46° on each side and mitre angle of up to 60° on each side
More mobile with the base frame: The UG-KAPEX base frame is a stand and a transport frame in one
Cutting depth limiter for rapid grooving
For a clean and healthy working environment: The extraction system in combination with a Festool mobile dust extractor sucks up the dust at its source
Always adapted to the working material: Festool saw blades are ideally adapted to the KAPEX KS 60 and the materials being used

Main Applications:

Ideal for mobile use in assembly applications
Cutting boards and panels up to 305 x 60 mm
Trimming strips, profiles and square timber up to 60 mm thick
Precisely angled adjustment of skirting boards and cornices without calculations – in conjunction with the bevel

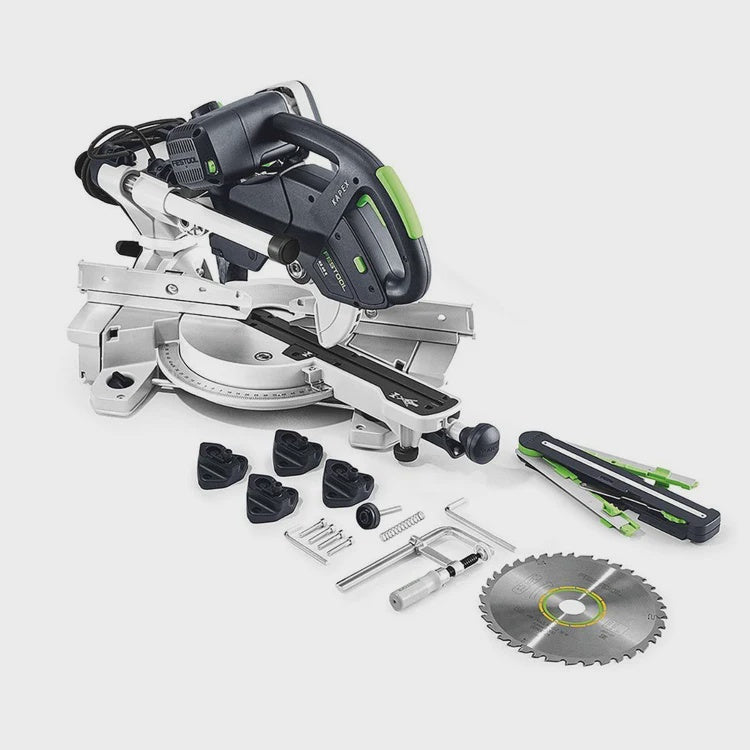

Comes With:

1 x Bevel
1 x Circular Saw Blade WOOD UNIVERSAL HW 216 x 2, 3 x 30 W36
1 x Elevation
1 x Fastening Clamp FSZ 120
1 x Hex Key, WAF 6
1 x LED Spotlight

Product Specification:

Part Number: 561729
Barcode: 4014549243077
Voltage: 230 V
Power consumption: 1200 W
Idle engine speed: 1300 - 3500 min⁻¹
Saw blade diameter: 216.00 mm
Cutting depth 90°/90°: 305 x 60 mm
Cutting depth at 45°/90°: 215 x 60 mm
Cutting depth 45°/45° (left): 215 x 40 mm
Inclination angle: 47/46 °
Mitre angle: 60/60 °
Dimensions (W x D x H): 661 x 475 x 430 mm
Dust extraction connection diameter: 27/36 mm
Cable length: 3.70 m
Cutting depth 60°/90°: 150 x 60 mm
Cutting depth 45°/45° (right): 215 x 20 mm
Product weight without accessories: 17.90 kg
Transport weight incl. accessories: 21.89 kg
Drive type: Mains
Sawing: Total vibration average, Ah: 2.50 m/s²
Sawing: Standards series EN: EN 62841
Sawing: Uncertainty (noise) K: 3.00 dB
Sawing: A-weighted sound power level, LWA: 100.00 dB(A)
Sawing: A-weighted sound pressure level, LpA: 91.00 dB(A)
Sawing: Uncertainty (vibration) K: 1.50 m/s²
