Trend H/JIG/D6 AnyDoor Hinge Jig Kit

Features:

Modular Rail Construction allows the jig to be shortened or extended to suit smaller or oversize doors. Ideal for Dutch/stable doors, loft conversions, access panels, loft hatches and understairs storage. Expansion rails available for doors larger than 2040mm (6’8”).
Patented* Twin-Rail System provides unlimited hinge positions within the rail, making the jig perfect for both new and replacement installations
Radius Hinge Compatibility allows fast and accurate installation of square or 10mm radius hinge profiles.
Bradawl or Screw Attachment Options enables the jig to be secured with either bradawls for speed (included) or 3.5mm (no.6) woodscrews for maximum stability.
Lightweight Anodized Aluminium Rails for optimum strength, durability, accuracy and a smooth router running surface.
Tough Carry Bag stores pre-built jig sections to minimise assembly time.
Adjustable Edge Guides accommodate 19mm, 26mm and 30mm hinge leaf widths (preset) or any leaf width between 12.7mm and 35mm (custom).
Adjustable Quick-Release Aperture Blocks feature Trend’s tool-free, patented* thumb-turn locking mechanism for fast, accurate hinge positioning.
3.0mm (1/8”) Steel End Plate ensures consistent head clearance and provides rapid door-to-frame transition.
25mm (1”) Rail Depth allows jig to be used against fixed door stops.
Includes: 16.0mm Guide Bush.
Requires: 12.0mm long-reach Router Cutter and ¼”/8mm Plunge Router.

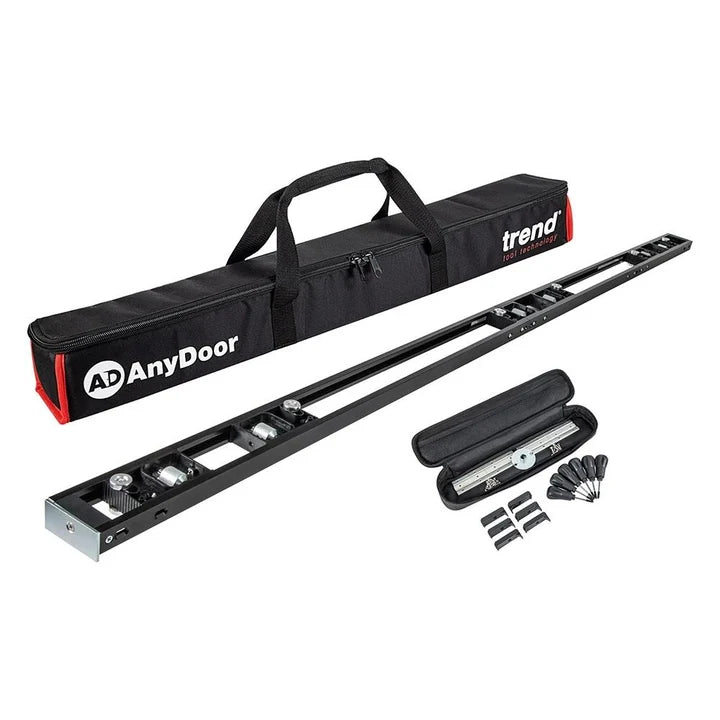

Comes With:

2 x 1ft 6in Rails
2 x 2ft Rails
2 x 3ft Rails
1 x End Blocks Pack
6 x Hinge Blocks
6 x Connectors
24 x Screws
6 x Bradawls
1 x GB160 Guide Bush
1 x Accessory Pouch
1 x Carry Bag

Product Specification:

Part Number: H/JIG/D6
Barcode: 5027654097168
